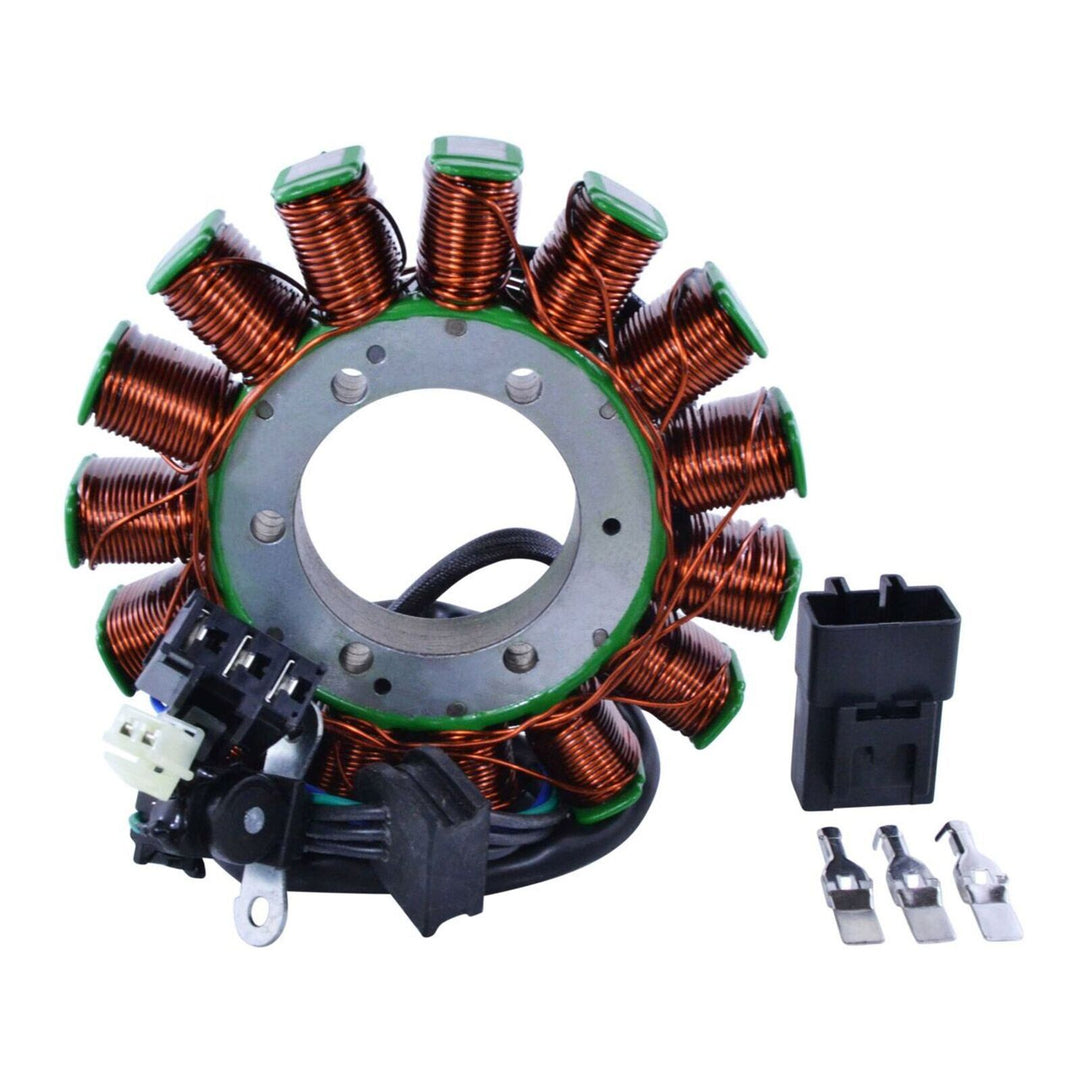

Brand new aftermarket generator stator. RM has even included the opposite connector (main harness side) which are a major cause for repetitive electrical issues.
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest-grade lamination materials.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.
- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Dimensions:
- Interio r diameter: 54 mm
- Exterior diameter: 140 mm
- Thickness: 18 mm
- Length of wires stator to grommet: 150 mm
- Length of wires grommet to plug: 420 mm
- Length of pickup coil's wire to grommet: 240 mm
Other Specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
Wire to Wire Resistance:
- Alternator: Black to Black = 0.5 ohms ±20%
- Pickup: Blue to Green = 239 ohms ±20%
